We offer a comprehensive range of air-cooled condensers engineered to perform efficiently across diverse environmental and operational conditions. Designed for compact aesthetics, superior durability, and reliable performance, our condensers require minimal maintenance—making them ideal for various refrigeration systems.
Coil Specifications
- Copper Tubes: Available in Ø3/8” and Ø1/2”
- Aluminum Fins:
- Standard Spacing: 2.1 mm and 2.5 mm
- Custom Fin Spacing: 1.8 mm to 4 mm (on request)
- Inlet/Outlet Connections: Copper headers
- Max Operating Pressure: 21 bar
- Refrigerant Compatibility: R404A, R507C, R22, R134a, R449A, R407F
Casing Options
- Materials:
- Electrostatic Powder-Coated Galvanized Steel (RAL 7035)
- Aluminum
- Design Features:
- Internal baffle plates to prevent fan wind-milling during off-cycles
Fan Configurations
- Fan Sizes: 500 mm, 630 mm, 710 mm, 800 mm, 910 mm, and 1000 mm
- Low-Noise Options: Suitable for sensitive environments
- Motor Types:
- EC (Electronically Commutated) motors
- AC motors
- Motor Protection: IP54-rated, Insulation Class F
- Optional Accessories: Axial fans, flow grids, and tube axial setups
- Operating Temperature Range: -40°C to +80°C
Customization & Optional Features
- Casing Customization: Available in different colors and wall thicknesses
- Fan Power Options:
- Single-phase (220V/50Hz)
- Three-phase (400V/50Hz)
- 60Hz models for international markets
- Capacity Range: From 5 kW to 1500 kW

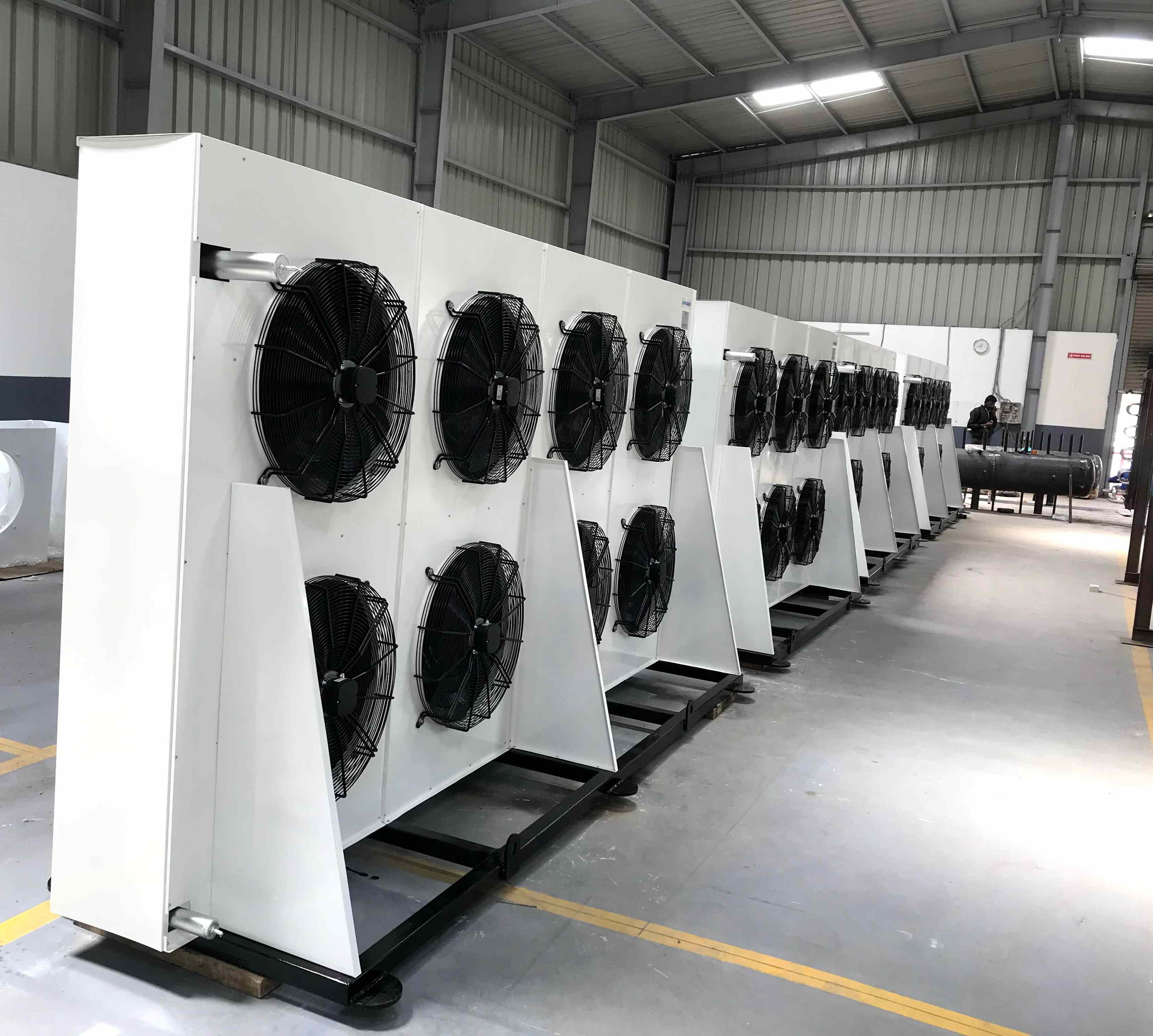

- Mounting Configurations: Vertical, Horizontal, and V-Type options

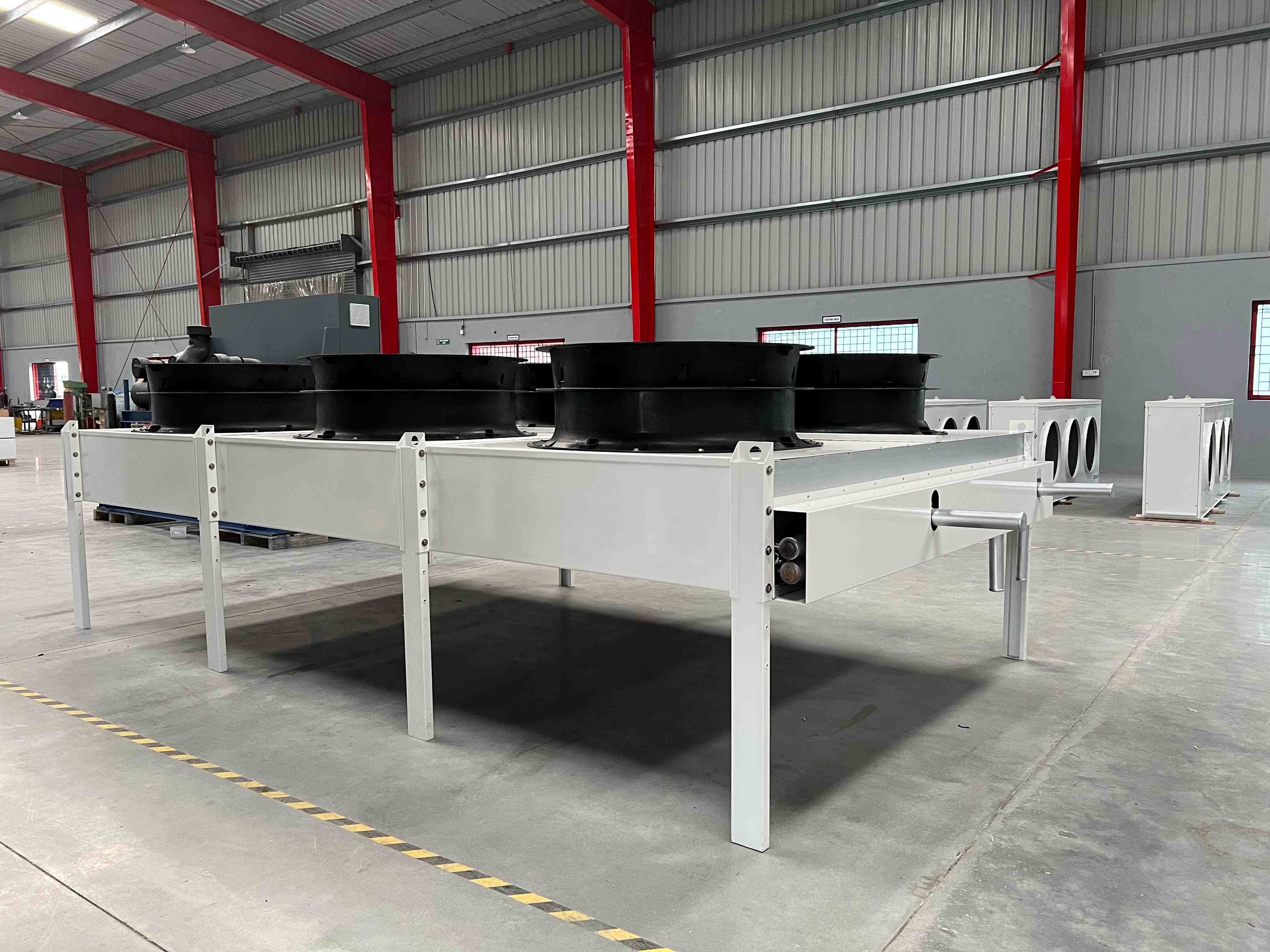

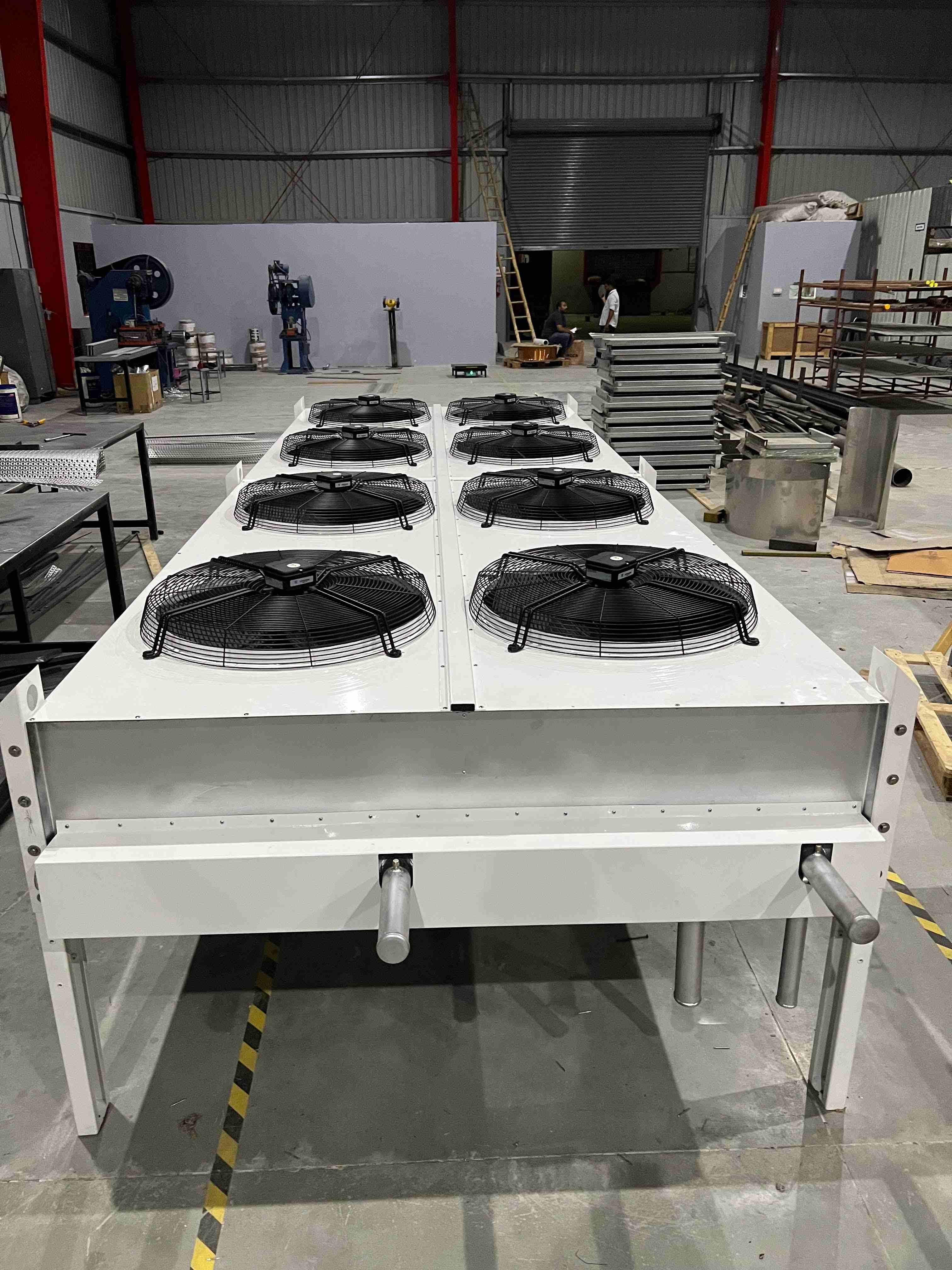

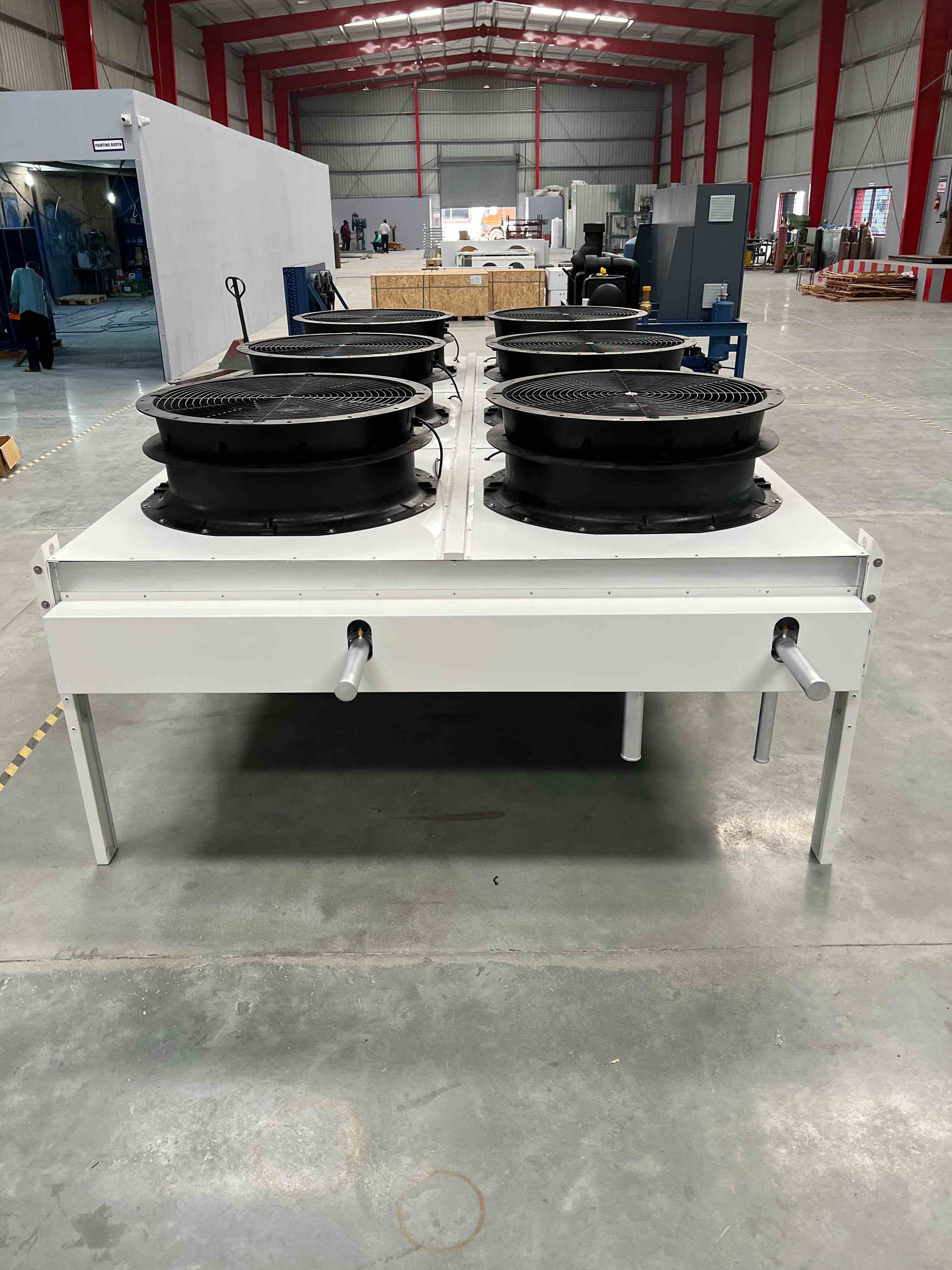

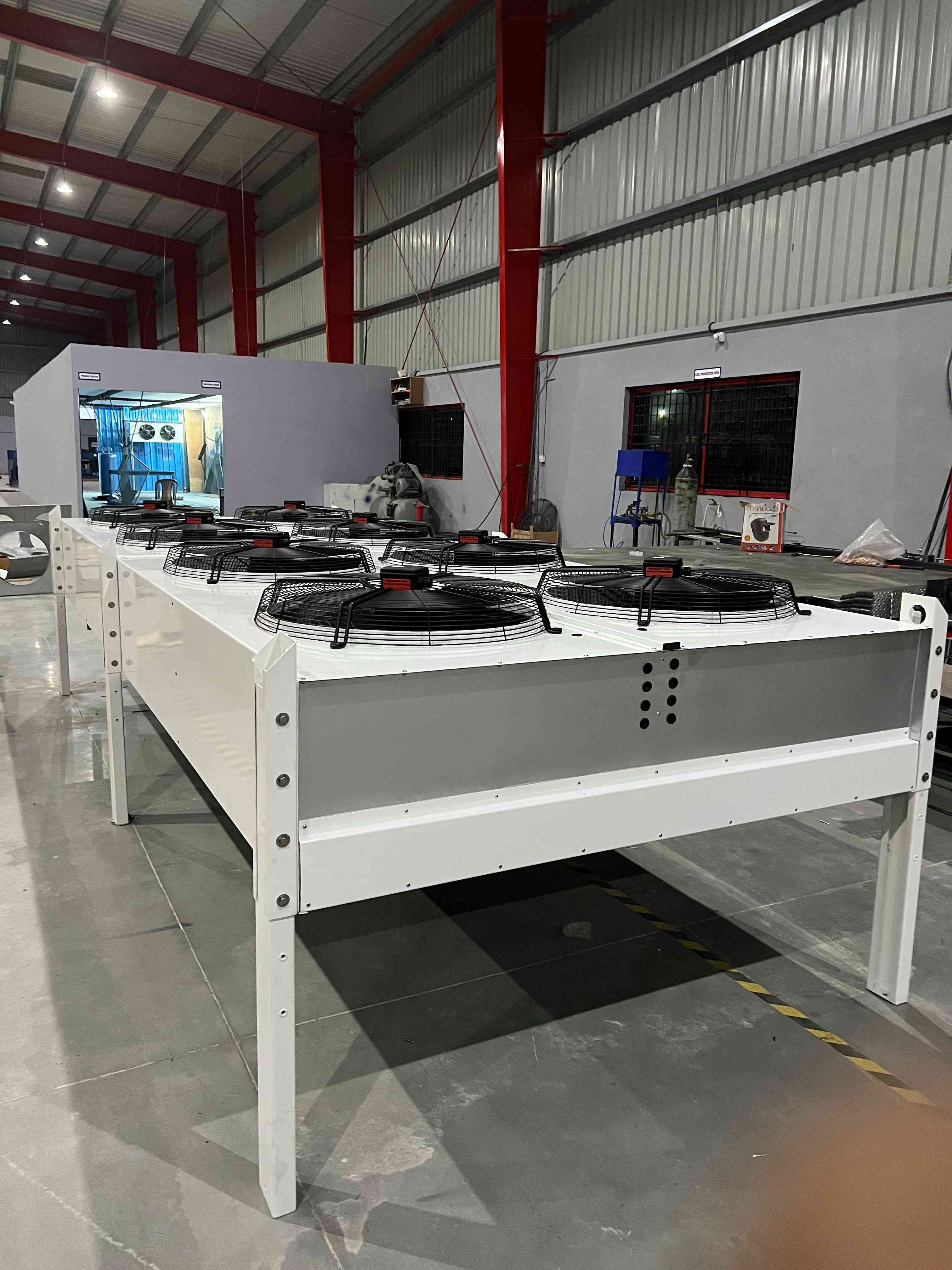

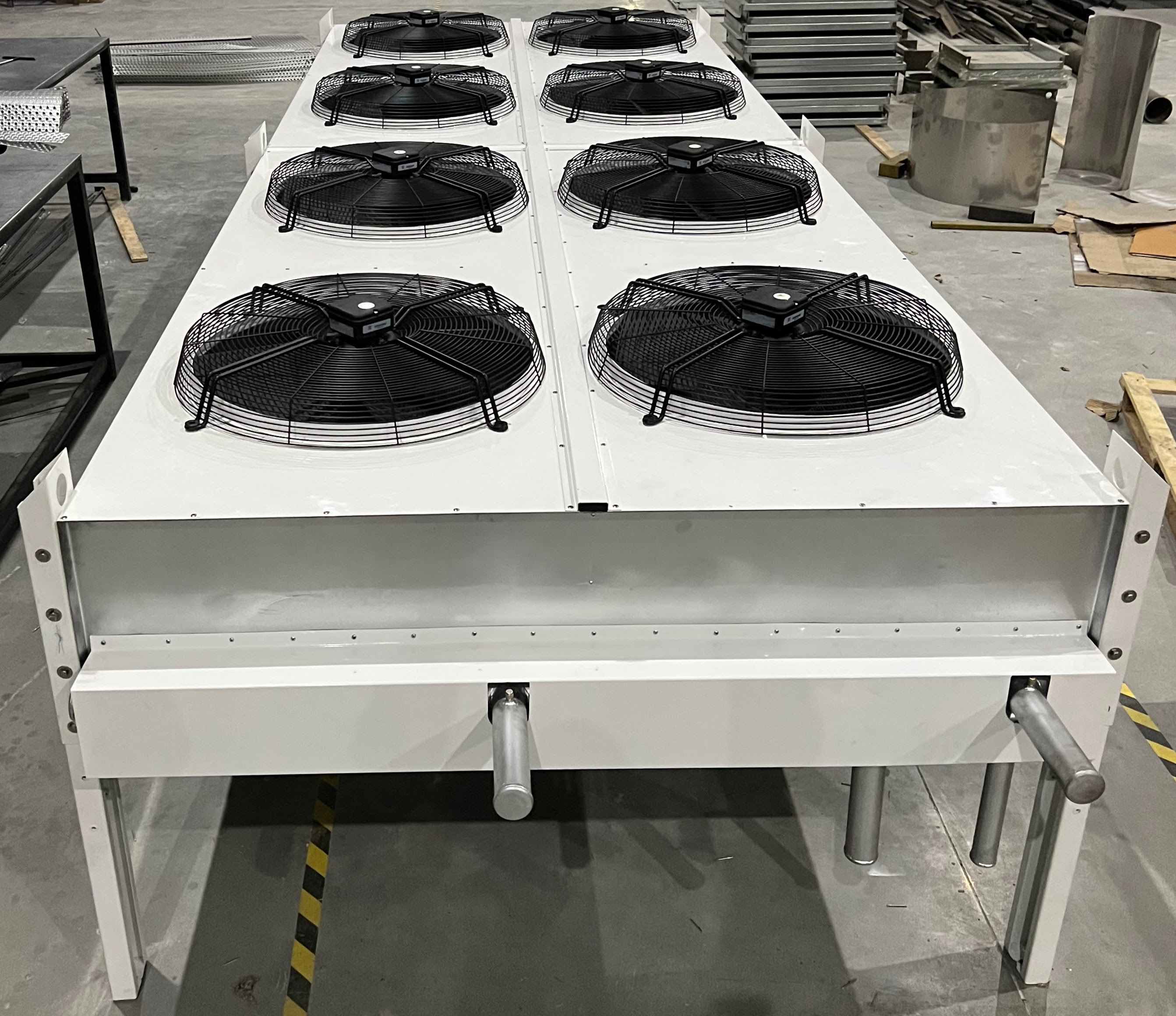

Adjustable Mounting Legs for Horizontal Air-Cooled Condensers
Partnering with Industry-Leading Brands
Our condensers incorporate premium fans from renowned manufacturers, such as:
- EBM-Papst
- ZIEHL-ABEGG
- Wing Fans
- Pneuma Fans
Why Choose Our Air-Cooled Condensers?
Our air-cooled condensers are built with high precision, ensuring exceptional reliability and performance over time. Whether you need a solution for industrial, commercial, or specialized applications, we offer fully tailored products to meet your specific needs. With flexible installation options and an emphasis on efficiency, our condensers guarantee long-lasting durability and excellent energy performance.
Explore our product range today and let us help you find the perfect cooling solution for your application!
